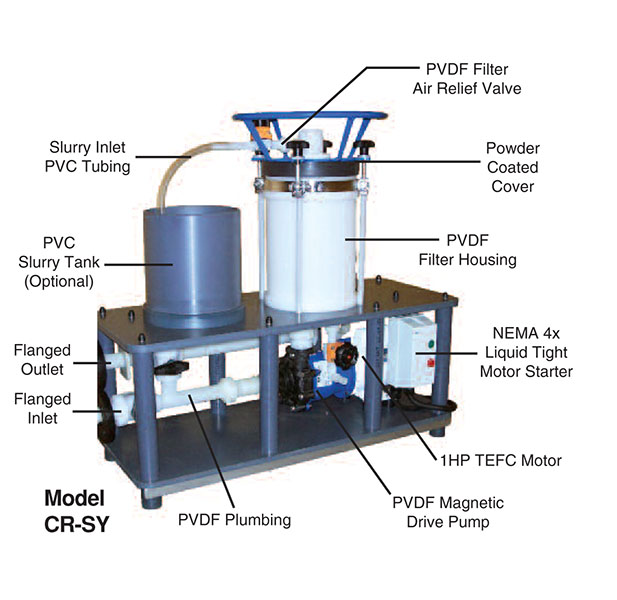

Mefiag brand CR Series – Chromic Acid Disc Filter Systems are special filtration units of polyvinylidene difluoride (PVDF) lined or solid PVDF construction. These units, which feature horizontal disc technology and capacities from 600 to 1,600 gph, are specifically for use in processes where chromic acid is involved (hard chromium, etching, etc.)
Corrosion ResistantSolid PVDF ConstructionThe MEFIAG? AdvantageMEFIAG? is recognized throughout the world as the leading supplier of high
Description
Precoated Flow Rate (Filtering Capacity) |
4,500 gph |
Filtration Surface Area |
44 ft |
Number of Filter Media |
44 |
Filter Media Diameter |
14 “ |
Approximate Length |
30 “ |
Approximate Width |
24 “ |
Approximate Height |
50 “ |
Approximate (Crated) Net Weight |
600 lbs |
Flanged Connections (Suction) |
1-1/2 in Inlet |
Flanged Connections (Discharge) |
1-1/4 in Outlet |
TEFC Motor |
3 hp |
Piping, Valves and Connections |
Piping, valves, and connections are all hard pipe PVDF. |
