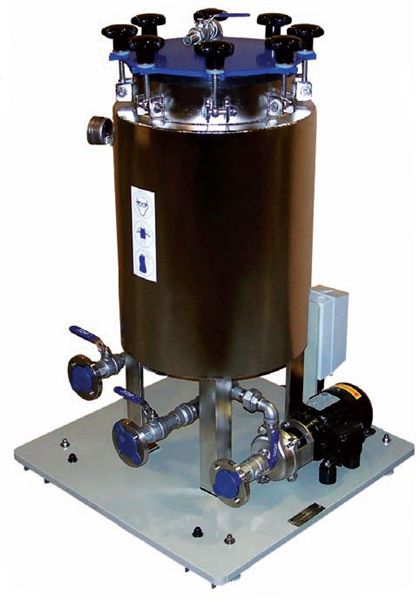

Our CECO Mefiag brand HT Series ? High Temperature Disc Filter Systems are specifically designed for handling high temperature solutions such as hot-sealing baths, electroless nickel and hot soak cleaners.
Description
Precoated Flow Rate |
1,200 gph |
Filtration Surface Area |
12 ft? |
Number of Filter Media |
35 |
Filter Media Diameter |
8-1/8 “ |
Sludge Holding Capacity |
266 in? |
Slurry Tank |
None |
Approximate Dimensions |
31 x 16 x 43 “ |
Flanged Connections (Suction) |
1-1/4 in Inlet |
Flanged Connections (Discharge) |
1-1/4 in Outlet |
Motor |
1 hp |
Pump Options |
Optional PVDF mechanical seal pump is available through 6500 model.Stainless steel mechanical seal pump is standard. |
Piping, Valves and Connections |
Piping, valves, and connections are all hard pipe stainless steel. |
Approximate (Crated) Weight |
245 lbs |
