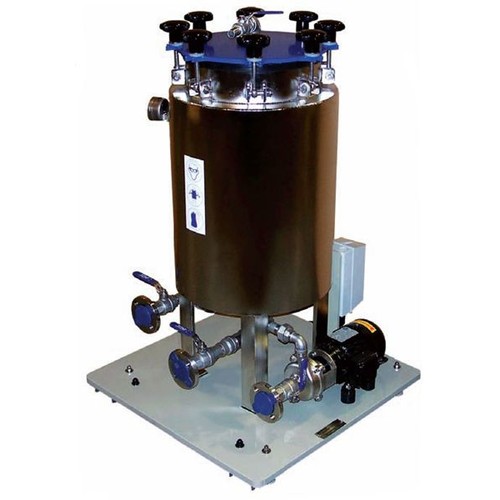

Our CECO Mefiag brand HT Series ? High Temperature Disc Filter Systems are specifically designed for handling high temperature solutions such as hot-sealing baths, electroless nickel and hot soak cleaners.
Description
Precoated Flow Rate |
6,500 gph |
Filtration Surface Area |
62 ft? |
Number of Filter Media |
35 |
Filter Media Diameter |
19 “ |
Sludge Holding Capacity |
2.97 ft? |
Slurry Tank |
None |
Approximate Dimensions |
39 x 32 x 53 “ |
Flanged Connections (Suction) |
2 in Inlet |
Flanged Connections (Discharge) |
1-1/2 in Outlet |
Motor |
3 hp |
Pump Options |
Optional PVDF mechanical seal pump is available through 6500 model.Stainless steel mechanical seal pump is standard |
Piping, Valves and Connections |
Piping, valves, and connections are all hard pipe stainless steel. |
Approximate (Crated) Weight |
975 lbs |
